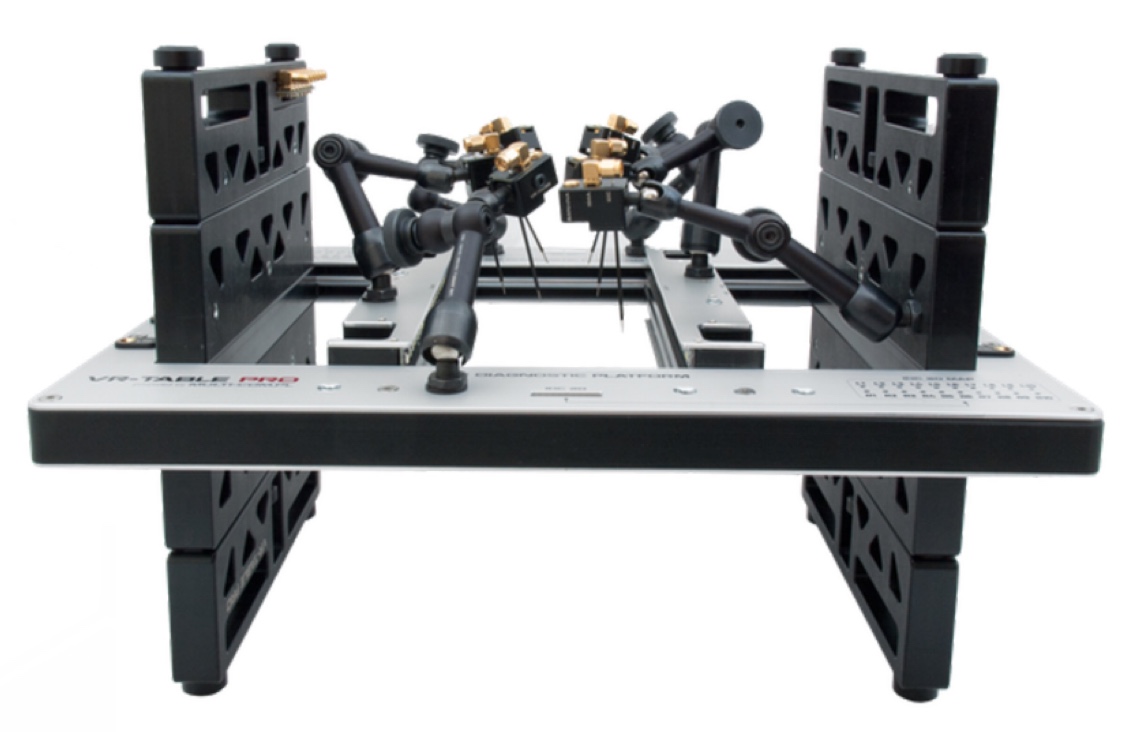

VR-TABLE PRO

Price not yet available

Modern mobile devices, GPS units, automotive modules and embedded electronics often require direct access to test points, memory interfaces and board-level communication lines. Traditional soldering is time-consuming, risky and difficult to repeat, especially when working with damaged, locked or fragile devices.

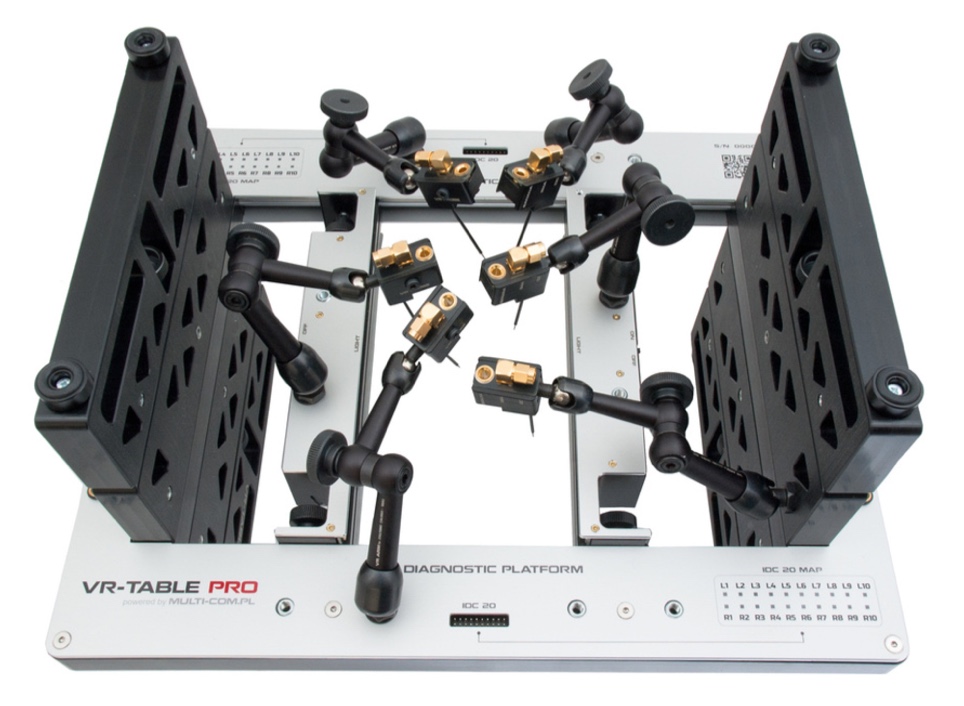

VR-TABLE PRO provides a controlled workstation for non-invasive contact with PCB test points. Instead of soldering wires directly to the board, the technician mounts the PCB, positions the probes and connects the required programmer, box or interface through the VR-TABLE PRO platform.

It is designed for workflows where stable physical contact, repeatable positioning and careful handling of the device are critical.

VR-TABLE PRO is suitable for:

Key benefits

Solderless workflow
Eliminates the need for direct soldering to delicate test points and fragile pads, reducing the risk of permanent PCB damage as well as saving time during setup and teardown.

Dual-side PCB access
Allows technicians to work on both sides of the board without repositioning or losing alignment, significantly improving efficiency when dealing with complex PCBs.

Stable long-session contact
Designed to maintain consistent probe pressure and positioning during extended read / write operations, minimizing the risk of connection loss, interrupted communication or repeated setup.

Repeatable lab setup
Enables technicians to recreate the same probe configuration across multiple devices or cases, improving consistency and reducing setup time for recurring tasks.

Cleaner workstation
Integrated holders, arms, probes and adapter support help organize the workspace and reduce cable clutter.

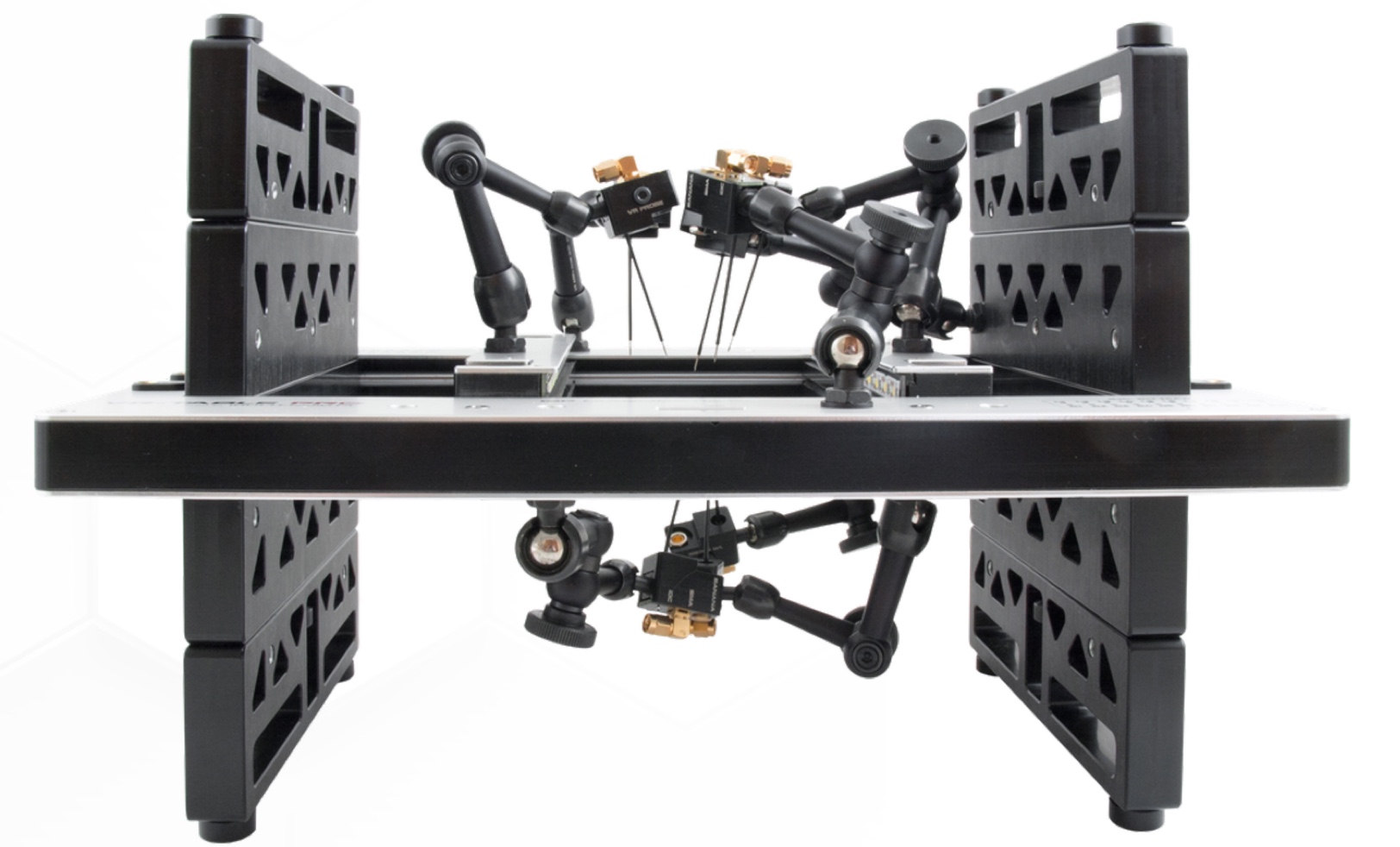

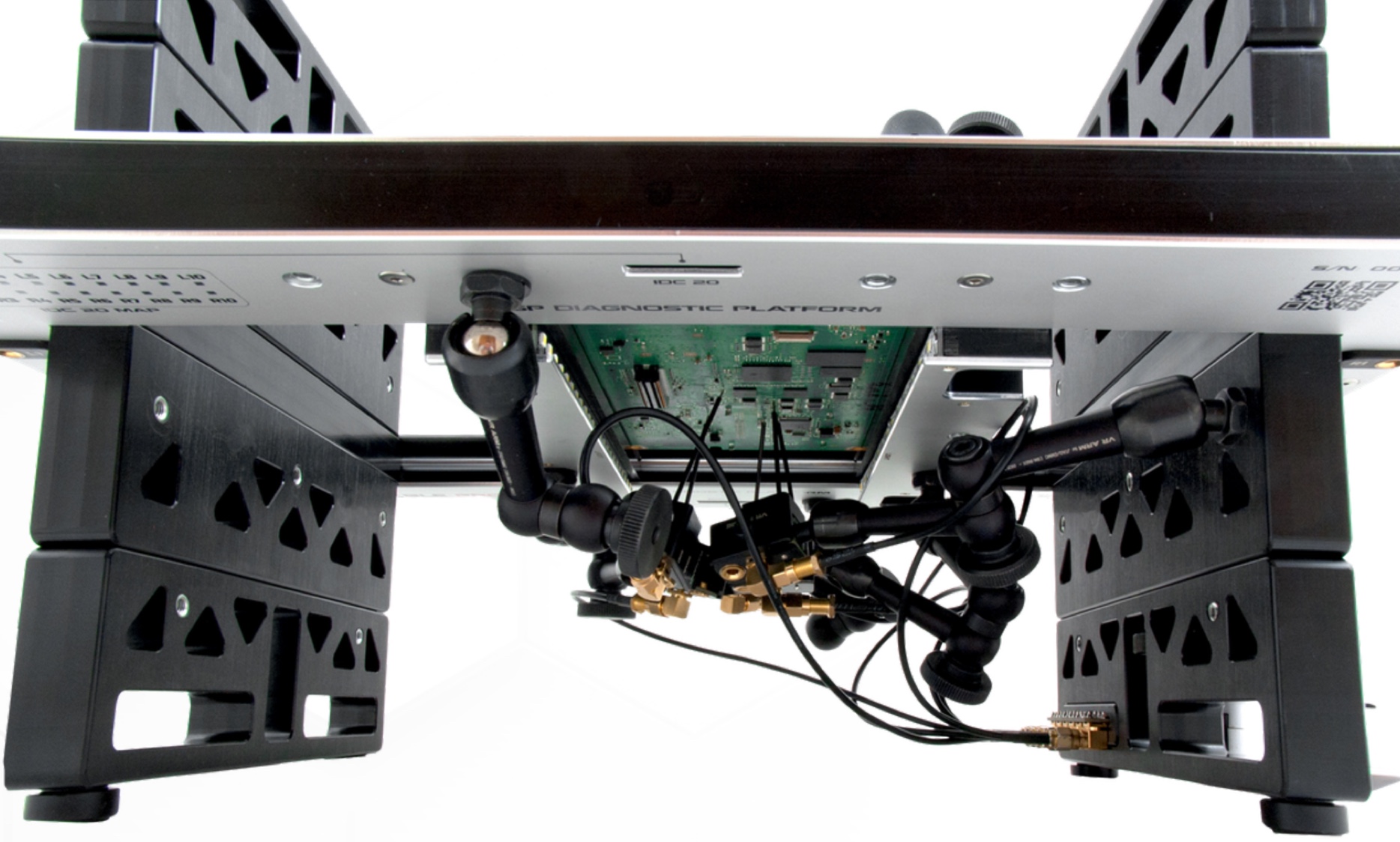

Dual-Side Access

Work on both sides of the PCB without remounting

The biggest feature in VR-TABLE PRO is the dual-side working system. Many modern PCBs require access to points located on both the top and bottom sides of the board. With traditional setups, this often means remounting the PCB, changing alignment and risking loss of contact.

VR-TABLE PRO solves this by allowing controlled access to both sides of the PCB while maintaining stable board positioning.

Why dual-side access matters:

Features

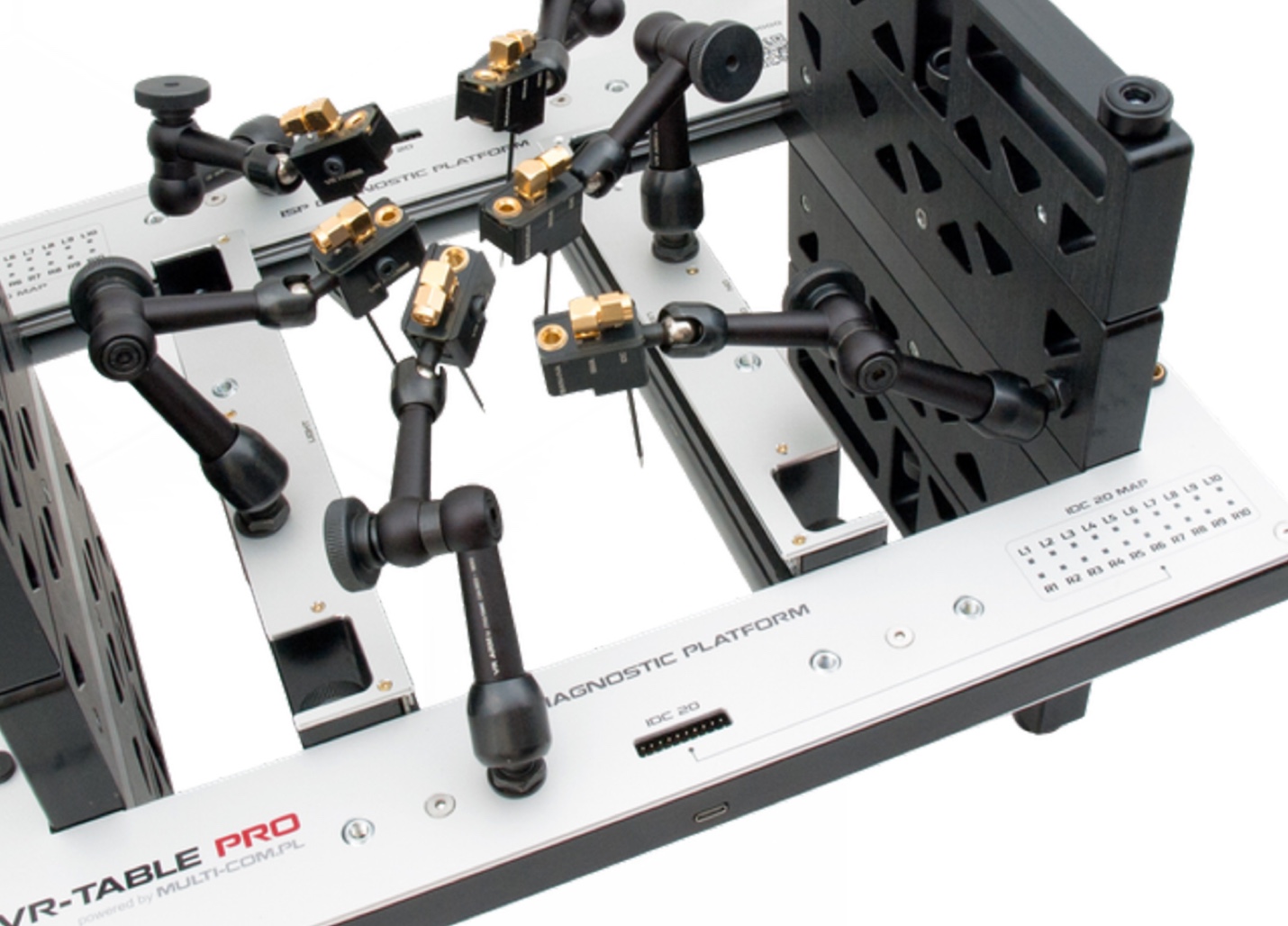

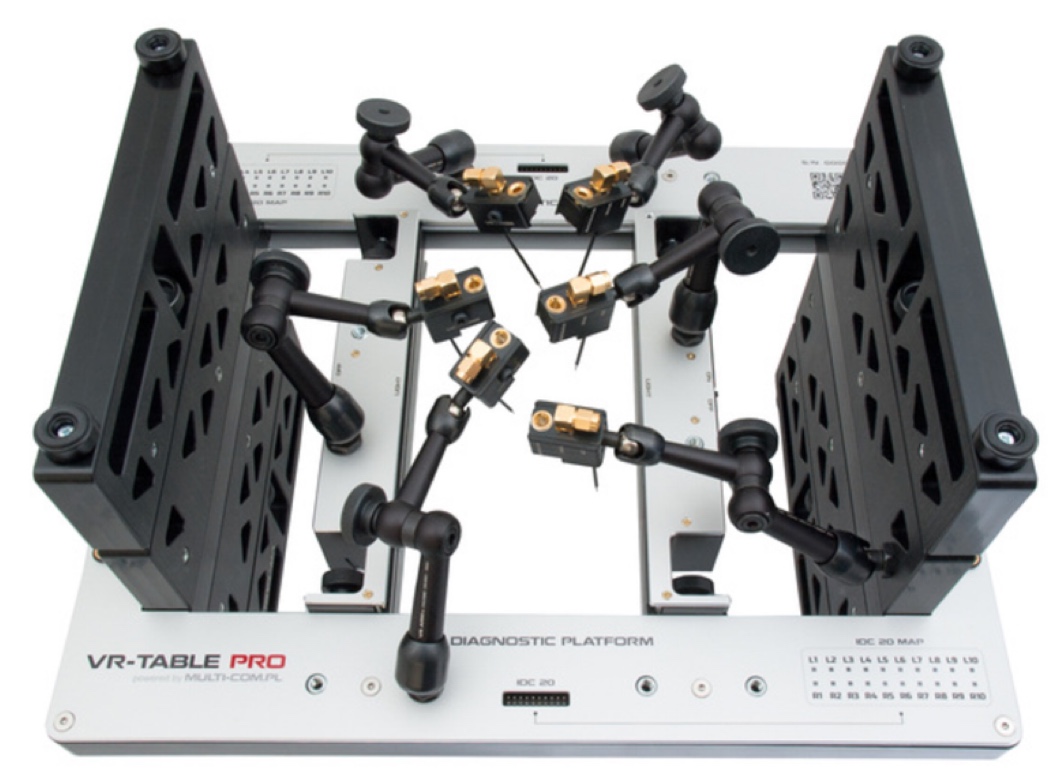

10 modular micrometric arms included as standard

VR-TABLE PRO comes with 10 modular micrometric arms included as standard, giving technicians the flexibility required for advanced ISP workflows over SD/MMC and SPI, as well as UART and JTAG-based access workflows.

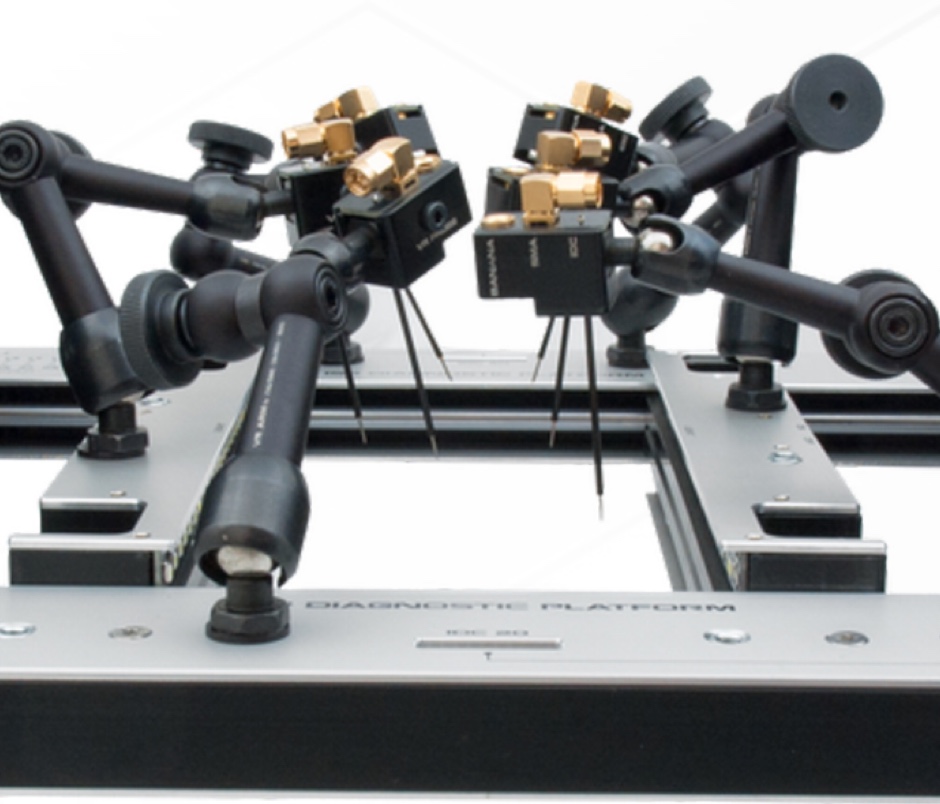

Each arm is designed for precise positioning and controlled contact with PCB test points. The micrometric adjustment helps the operator place probes accurately, even when working with compact boards and dense layouts.

Brushed aluminium and TecaForm-H construction

VR-TABLE PRO is built using brushed aluminium and TecaForm-H components. This gives the workstation a clean, professional appearance while keeping the working platform rigid and suitable for laboratory use.

The material combination supports precision, stability and durability in daily technical workflows.

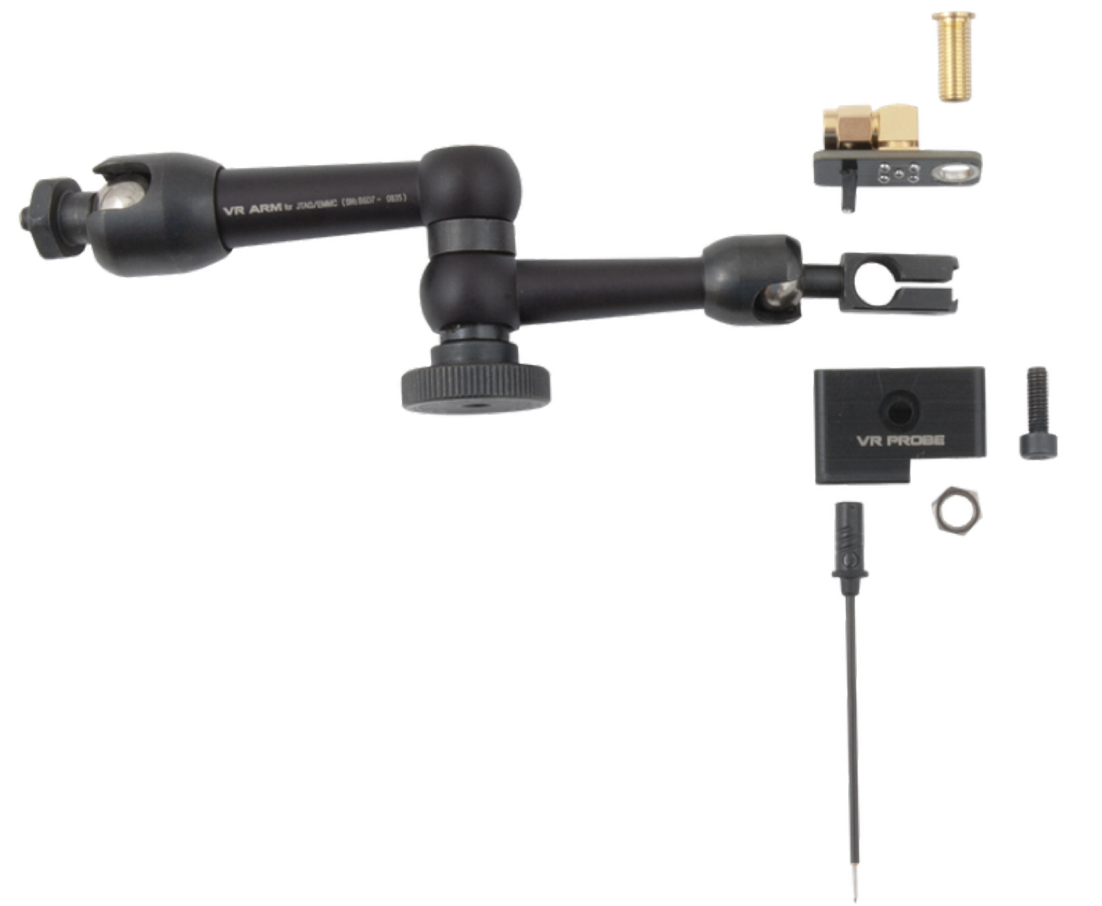

Spring-loaded probes with multiple connection options

The included spring-loaded probes are designed to maintain steady pressure on selected PCB test points. This improves contact reliability and reduces the need for aggressive mechanical force during sensitive board-level operations.

Probe connections can be routed through several interface options, including:

• SMA connectors (convertible to other connector standards via SMA adapters)
• 4 mm banana sockets

Fully bearing-supported guides and holders

VR-TABLE PRO uses fully bearing-supported guides and holders to provide smooth, stable and precise movement during PCB positioning. The bearing-guided mechanism improves control during alignment and helps maintain stable positioning once the board is prepared for probing

Built-in LED lighting powered by two 18650 batteries

Integrated LED lighting improves visibility around the working area and helps during probe placement, board positioning and visual inspection.

This is especially useful when working under a microscope, where consistent light and clear visibility are essential. *Batteries are not included.*

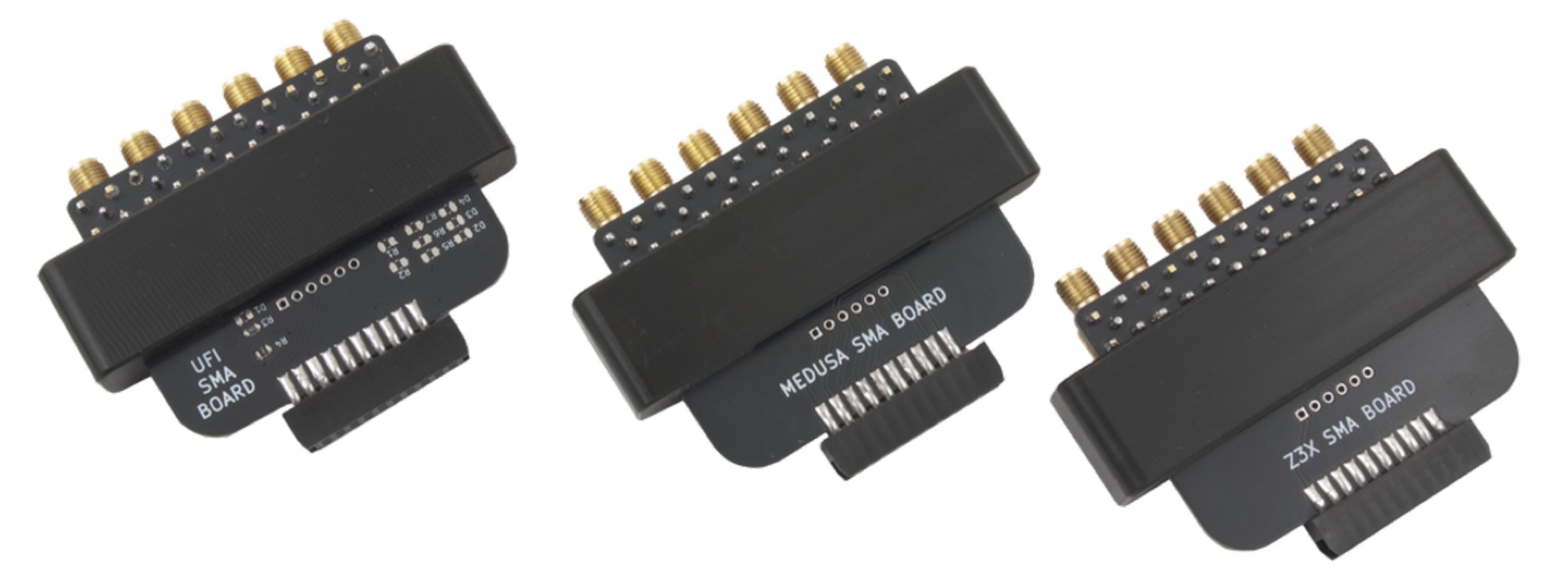

Slide-in adapters

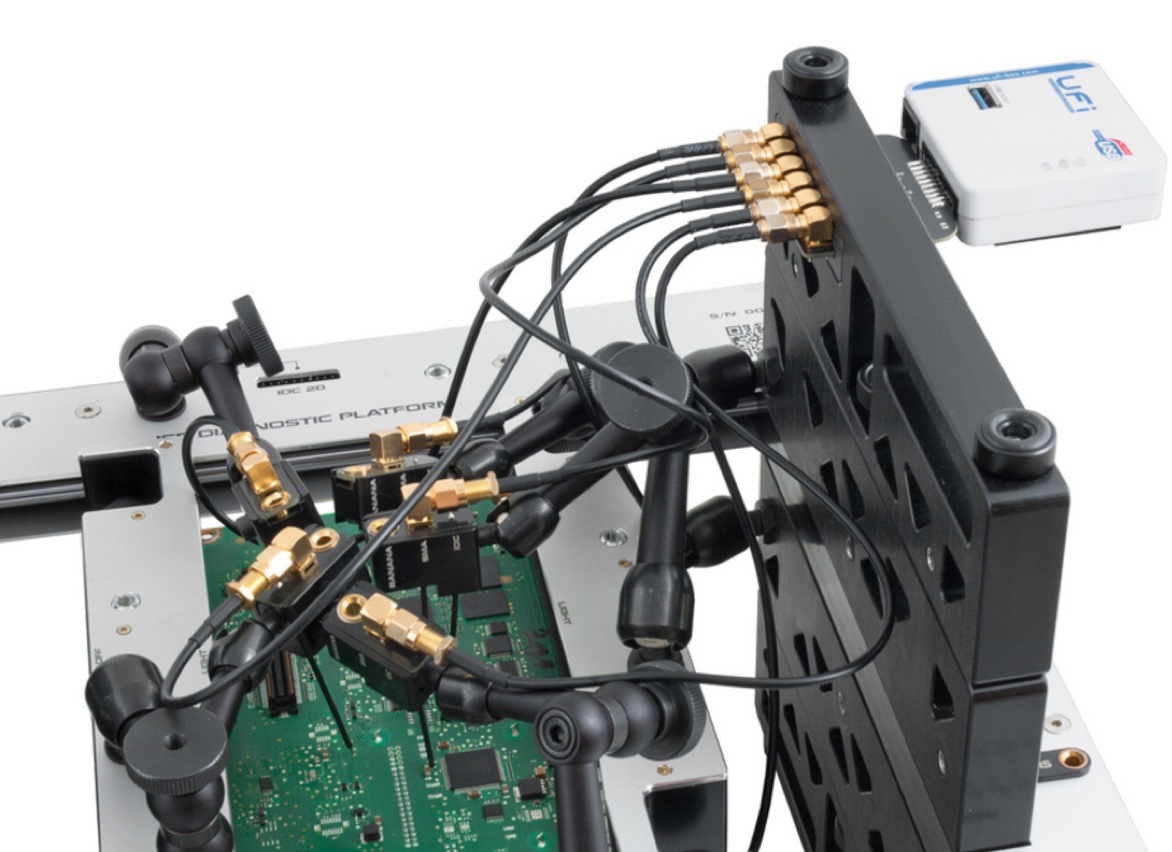

VR-TABLE PRO includes slide-in adapters designed to connect the workstation with popular service boxes and programmers. The adapter concept helps keep the setup organized and reduces the need for improvised wiring.

Instead of rebuilding the connection each time, the technician can insert the required adapter, connect the programmer and continue working with a cleaner signal path.

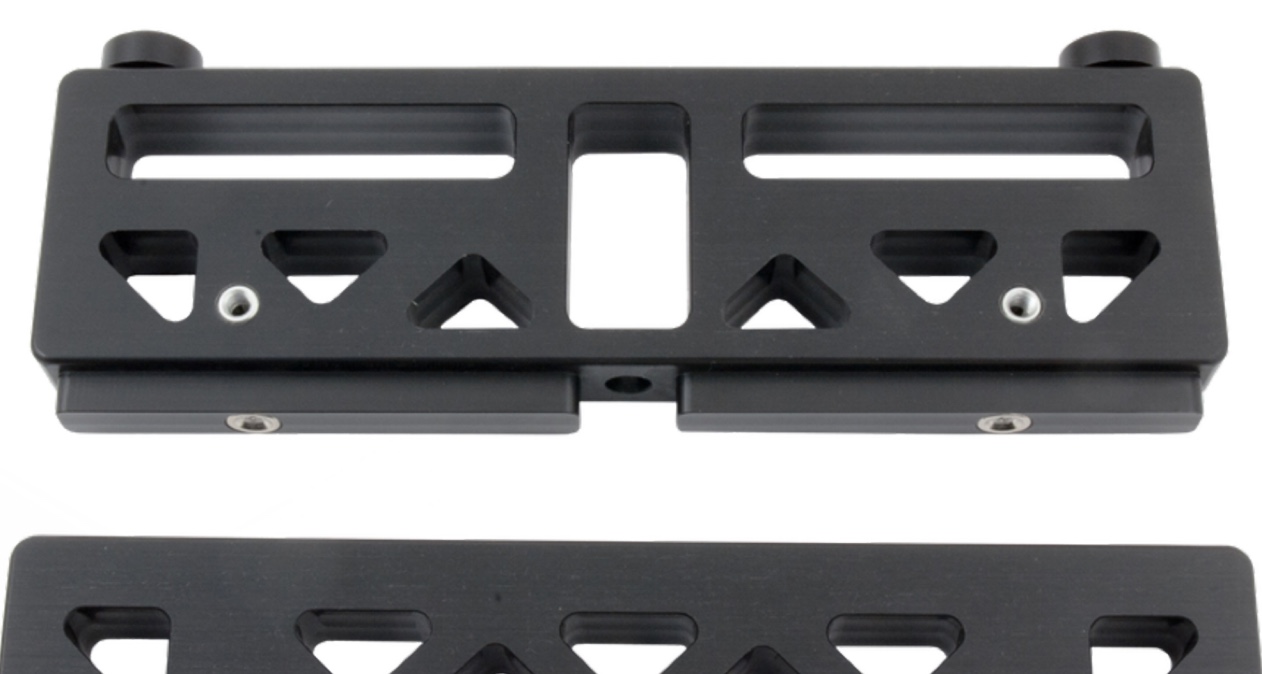

Removable magnetic height extenders

VR-TABLE PRO includes removable height extenders designed to make board positioning more flexible.

The extenders are held in place using magnets and a securing screw, allowing the operator to adjust the working height when needed while keeping the setup stable during operation.

Compatibility & Workflow

Built around real forensic and data recovery workflows

VR-TABLE PRO is designed for non-invasive ISP reading and writing, as well as JTAG-based board-level access.

The platform supports workflows where technicians need reliable physical contact with PCB test points and communication interfaces, especially when working with mobile devices, GPS units, automotive modules, IoT devices and embedded electronics.

Instead of treating every workflow as a separate category, VR-TABLE PRO is built around practical board-level access paths such as SD/MMC, SPI, UART and JTAG.

Supported workflow structure:

Compatible with popular service boxes

VR-TABLE PRO can be used with commonly used professional boxes and programmers, including:

• Z3X / Easy-JTAG
• Medusa Pro
• UFI Box
• Octoplus

All trademarks are the property of their respective owners. Compatibility information is provided for reference only and may depend on the selected adapter, external tool, target device and workflow configuration.

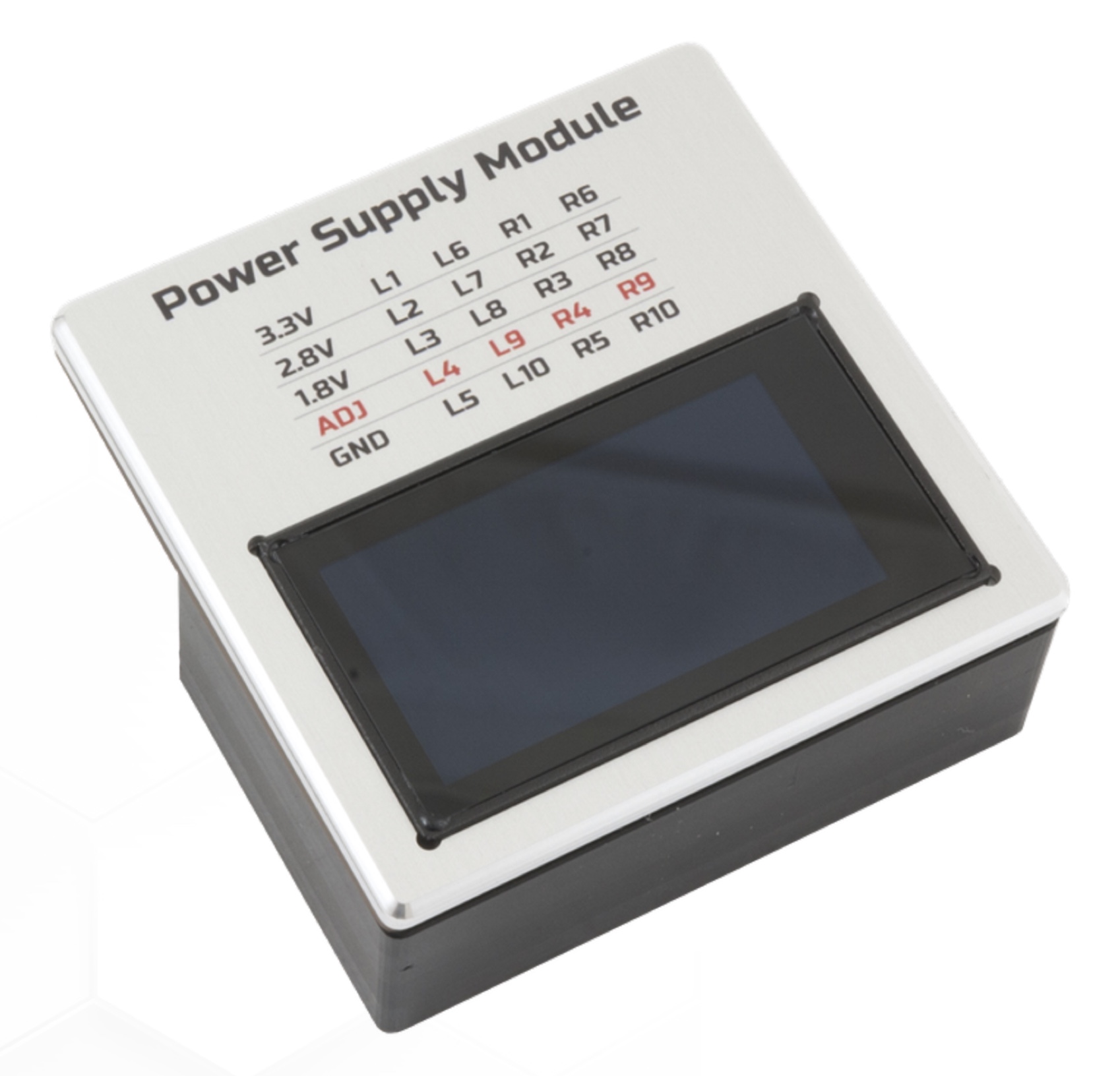

Dedicated Power Module

VR-TABLE PRO is getting its own power supply module. The module provides touchscreen-controlled power management for professional ISP workflows, especially when working with memory interfaces and board-level access scenarios.

Features of the power module include:

Set contents & Accessories

The planned VR-TABLE PRO standard set includes:

Optional accessories:
